Gunnebo Industries Universal Weld-On Hook – UKN

SKU: GRRR332 Category: Lifting Points

Product details

The original excavator material handling hook, designed to transform an excavator into a lifting crane for use on construction sites.
Made from forged alloy steel, hardened and tempered for maximum strength and durability.
Base plate is prepared for welding, ensuring secure attachment to equipment.
Hardened and tempered hinge pin and stainless steel spring.
Clear markings include the model, size, traceability code, and country of origin for full identification.

Videos

Universal Weld-On Hook - UKN

Stock No.	Code	WLL (lb)*	Dimensions (in)							Weight Each (lb)
			B	G	H	K	L	A	X
											Z1002560	UKN-0.75*	1,653	.79	.51	.79	.75	3.21	.20	2.20	.44
											Z6511810	UKN-1*	2,204	1.06	.67	.98	.98	3.74	.24	2.83	1.32
											Z7009060	UKN-2*	4,500	1.30	.79	1.18	1.18	4.49	.31	3.39	1.98
											Z6455730	UKN-3	6,612	1.18	.91	1.26	1.38	5.20	.39	4.13	2.87
											Z6521160	UKN-4	8,800	1.18	1.14	1.50	1.65	5.51	.43	4.49	4.41
											Z6455800	UKN-5	11,020	1.34	1.18	1.85	1.77	6.50	.47	5.16	7.05
											Z6515390	UKN-8	17,632	1.34	1.57	2.01	1.97	6.77	.51	5.24	7.94
											Z6456030	UKN-10	22,040	1.85	1.69	2.28	2.17	8.66	.55	6.69	18.08
											Z1007850	UKN-15	33,060	2.17	1.97	2.64	2.36	9.45	.59	7.40	21.61
											Z1007851	UKN-20	44,080	2.56	2.36	3.35	2.36	10.83	.59	8.15	27.34

Stock No.	Code	WLL (t)	Dimensions (mm)							Weight Each (kg)
			B	G	H	K	L	A	X
											Z1002560	UKN-0.75*	0.75	20	13	20	19	81.5	5	56	0.2
											Z6511810	UKN-1*	1.0	27	17	25	25	95	6	72	0.6
											Z7009060	UKN-2*	2.0	33	20	30	30	114	8	86	0.9
											Z6455730	UKN-3	3.0	30	23	32	35	132	10	105	1.3
											Z6521160	UKN-4	4.0	30	29	38	42	140	11	114	2.0
											Z6455800	UKN-5	5.0	34	30	47	45	165	12	131	3.2
											Z6515390	UKN-8	8.0	34	40	51	50	172	13	133	3.6
											Z6456030	UKN-10	10.0	47	43	58	55	220	14	170	8.2
											Z1007850	UKN-15	15.0	55	50	67	60	240	15	188	9.8
											Z1007851	UKN-20	20.0	65	60	85	60	275	15	207	12.4

** Safety factor 5:1

Fulfills requirements in: EN 474-1.

* Welding plate slightly curved

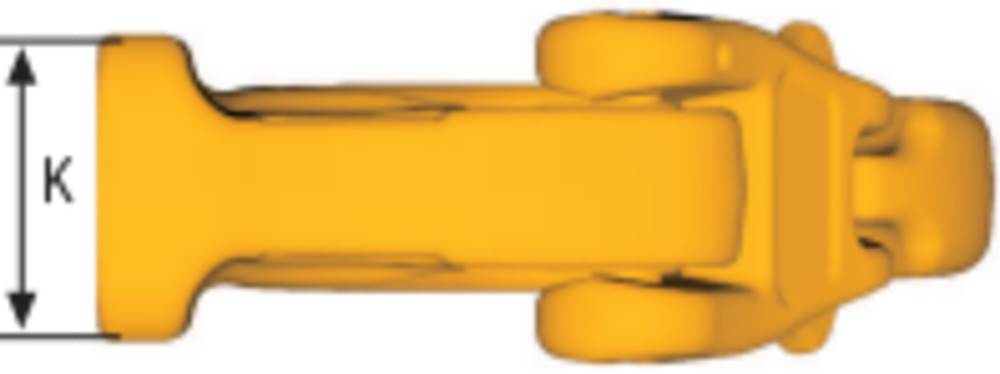

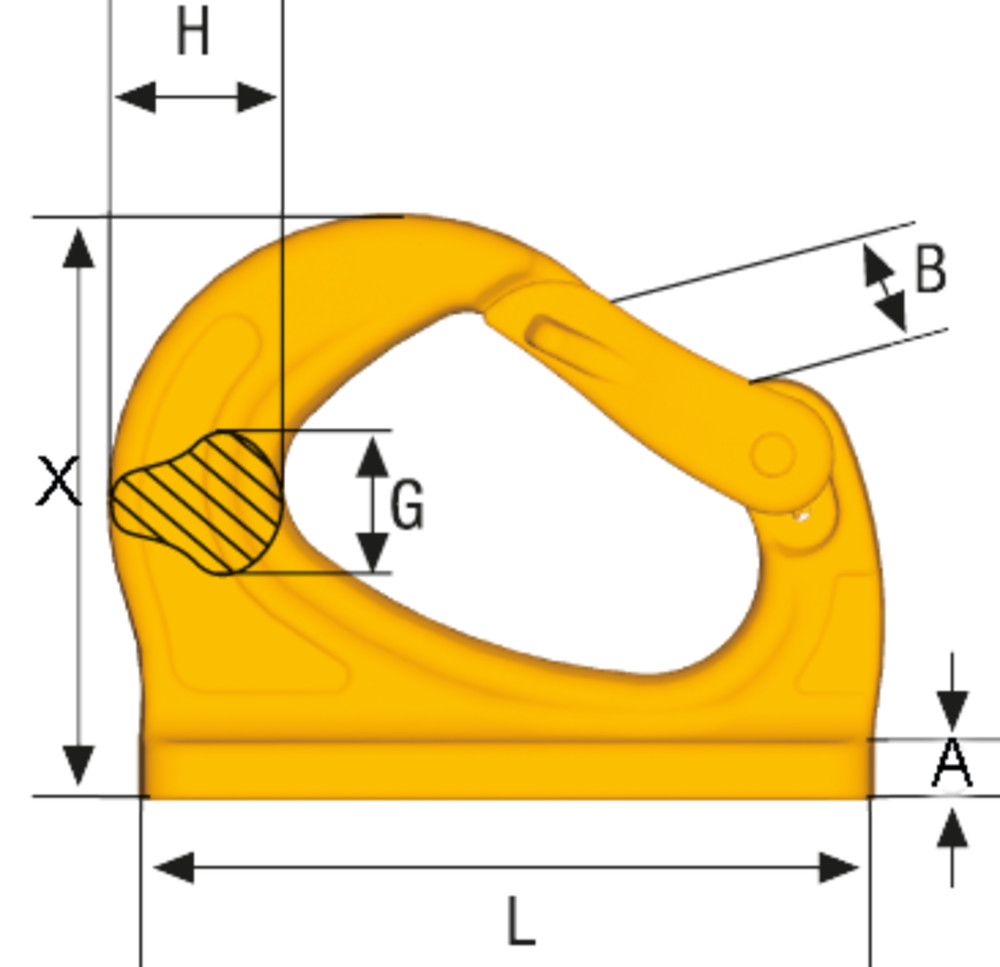

Diagram Images
