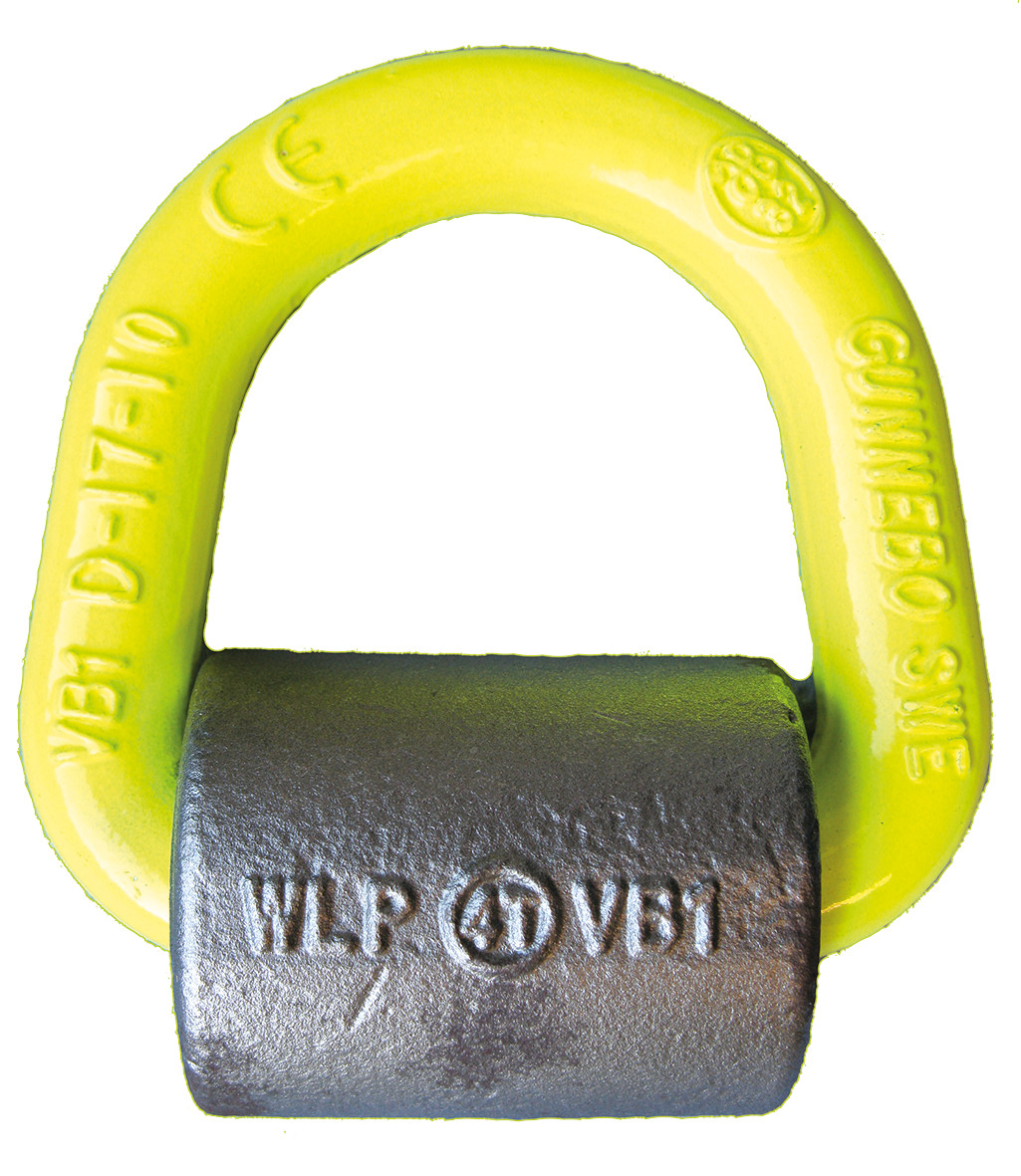

Gunnebo Industries Weldable lifting point WLP

SKU: GRRR344 Category: Lifting Points

Product details

Supplied with a spring that provides a stay-up function, ensuring easy handling and positioning during use.

Videos

Weldable lifting point WLP

Stock No.	Code	WLL (lb)	Dimensions (in)				Weight (lb)
			B	G	L	X
								Z7009001	WLP-2.5T	5510	1.96	1.06	2.08	3.74	1.10
								Z7009011	WLP-4T	8800	2.28	1.33	1.88	3.81	1.76
								Z7009021	WLP-7T	15428	2.51	1.61	2.87	5.31	3.96
								Z7009031	WLP-10T	22040	2.55	2.04	2.87	5.98	7.49
								Z7009041	WLP-16T	35300	3.54	2.59	4.13	7.99	14.7

Stock No.	Code	WLL (t)	Dimensions (mm)				Weight (kg)
			B	G	L	X
								Z7009001	WLP-2.5T	2.5	50	27	53	95	0.5
								Z7009011	WLP-4T	4.0	58	34	48	97	0.8
								Z7009021	WLP-7T	7.0	64	41	73	135	1.8
								Z7009031	WLP-10T	10.0	65	52	73	152	3.4
								Z7009041	WLP-16T	16.0	90	66	105	203	6.7

Supplied with spring for stay up function. Master Link measurements, see Master Link D.

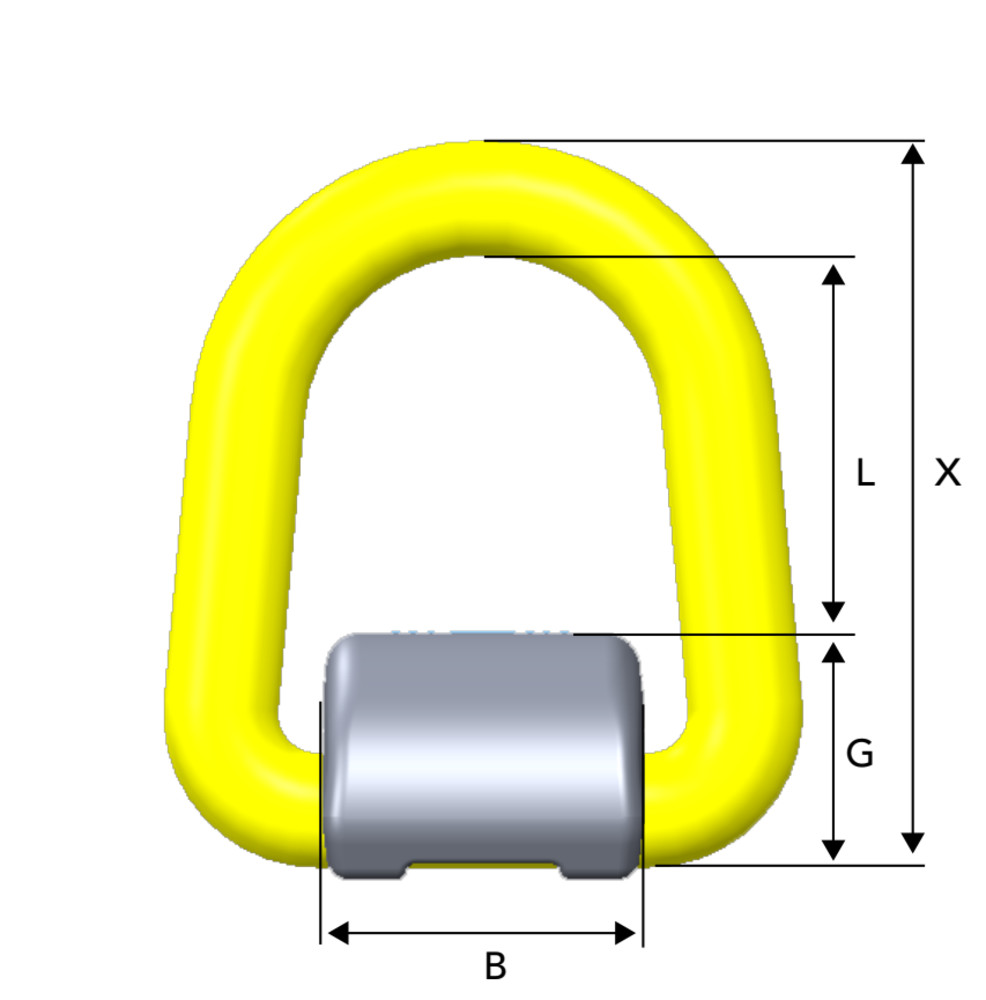

Diagram Images
