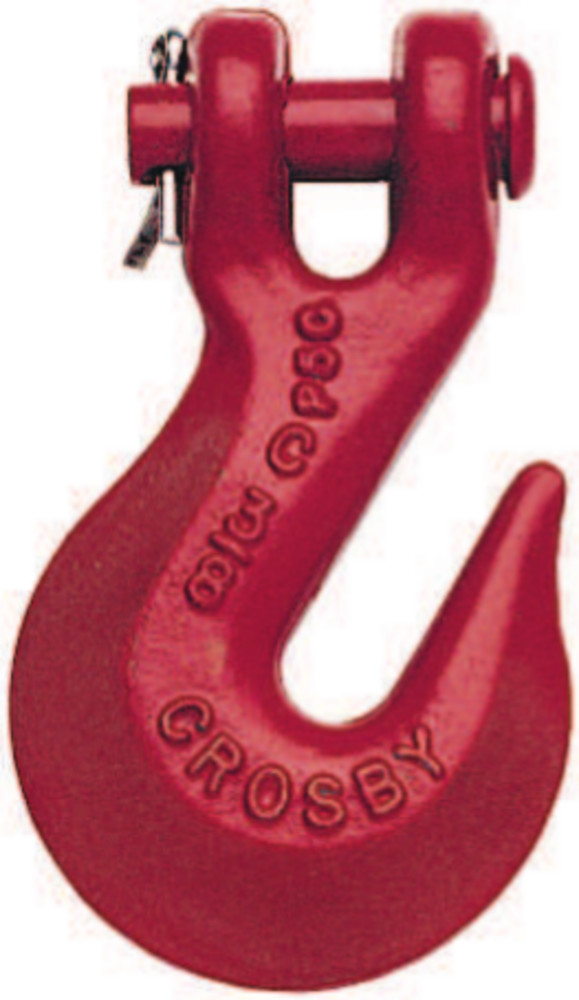

Red Crosby lifting hook for secure rigging and heavy-duty lifting applications.

Crosby A-330 Clevis Grab Hooks

SKU: GRRR121 Category: Load Securement

Product details

Forged steel - Quenched & Tempered.
Design factor is 4:1.
Features quick and easy assembly.
Designed for Grade 8 chain.

Videos

A-330 Clevis Grab Hooks

Dimensions (in)
A	B	C	D	E	G	H	K	L	N	P	R
												1/4	1027249*	3500	.36	1.00	.32	.31	1.81	.34	.88	.72	.47	3.05	1.75	.31	1.64
												5/16	1027267*	4700	.62	1.22	.43	.36	2.12	.44	.97	.91	.59	3.66	2.06	.38	2.02
												3/8	1027285*	7100	1.00	1.42	.48	.49	2.53	.50	1.17	1.00	.72	4.42	2.34	.44	2.41
												1/2	1027329*	12000	2.22	1.88	.57	.51	3.56	.66	1.53	1.25	.78	5.72	2.97	.63	3.19
												5/8	1027347	18100	4.41	2.31	.71	.67	4.39	.78	1.78	1.56	1.09	6.83	4.31	.75	4.09
												3/4	1027365	24700	6.50	2.62	.94	.94	5.22	.94	2.13	1.88	1.31	8.13	5.09	.88	4.63

Dimensions (mm)
A	B	C	D	E	G	H	K	L	N	P	R
												7	1027249*	1.59	.16	25.4	8.15	7.85	46.0	8.65	22.4	18.3	11.9	77.5	44.5	7.85	41.7
												8	1027267*	2.04	.29	30.2	9.90	9.15	54.0	11.2	24.6	23.1	15.0	93.0	52.5	9.65	61.5
												10	1027285*	3.22	.45	35.1	11.4	11.4	64.5	12.7	29.7	25.4	18.3	109	59.5	11.2	61.0
												13	1027329*	8.21	.95	47.8	14.5	17.8	90.5	16.8	38.9	31.8	19.8	145	75.5	16.0	81.0
												16	1027347	11.2	1.91	58.0	23.1	21.3	112	19.8	45.2	39.6	27.7	179	109	19.1	104
												19	1027365	11.2	2.95	66.5	23.9	23.9	133	23.9	54.0	47.8	33.3	207	129	22.4	118

* These A-330 hooks are forged with an “8” designating Grade 80, and are suitable for use with Grade 8 chain in overhead lifting applications as long as the hook is proof-tested as part of the chain sling assembly or as an individual component per ASME B30.9. We recommend the use of the A-1338 / A-1358 which is proof tested and supplied with a proof test certificate.
