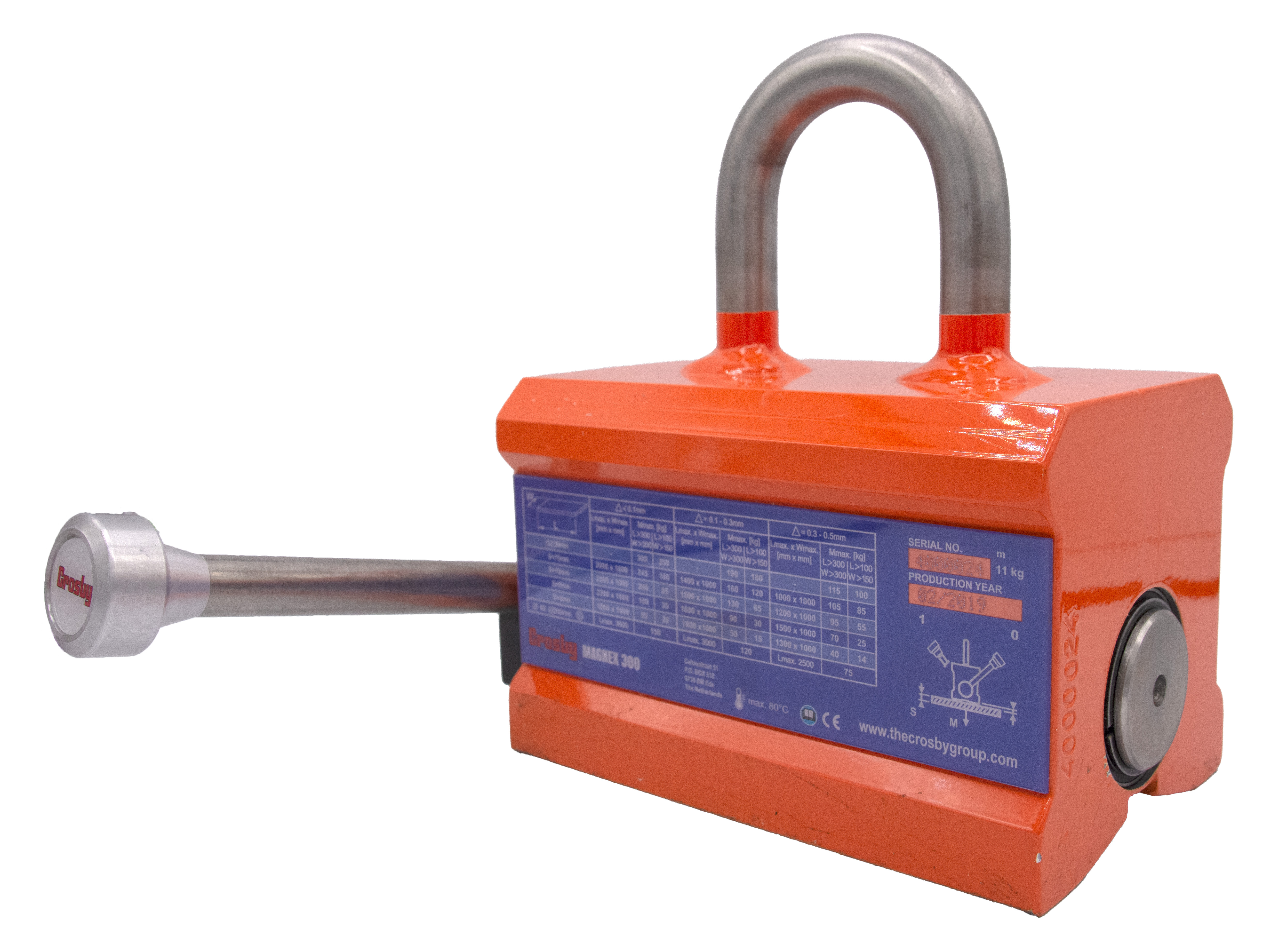

Orange industrial lifting magnet with handle and product label, used for heavy-duty material handling operations.

Crosby IP MAGNEX™ Lifting Magnet

SKU: GRRR508 Category:

Product details

  • Solid steel construction with recessed area, reducing risk of damage to tags for identification and technical user information.
  • Fully welded construction, minimizing maintenance costs.
  • Innovative and patented easy switch stop block, equipped with ball bearing and ergonomic handle for increased safety and ease of use.
  • Individually proof tested to 3 times the working load limit with certification.
  • Each product is individually serialized, with the serial number and proof load test date stamped on body.
  • User manual with test certificate included with each magnet
  • 5-year warranty on magnetic system.
  • CE certified including test certificate in accordance with EN 13155.
  • Maintenance replacement kits are available.
  • Can be used on both flat and round steel surfaces.
  • Temperature range +32 °F (0 °C) to +176 °F (+80 °C)

MAGNEX™ Lifting Magnet

ModelWorking Load Limit (lb)*Stock No.Weight Each (lb)Dimensions (in)
ABCDEFGH
MAGNEX150331
2708023		6.82.44.54.00.41.21.62.74.7
MAGNEX300661
2708024		243.98.36.00.62.02.63.97.0
MAGNEX6001323
2708025		47.84.79.69.70.82.52.63.97.2
MAGNEX10002205
2708026		90.25.713.012.00.82.53.64.99.3
MAGNEX15003307
2708027		158.16.515.414.70.82.53.66.310.7
MAGNEX20004409
2708028		201.56.518.718.80.82.53.66.310.7
ModelWorking Load Limit (kg)*Stock No.Weight Each (kg)Dimensions (mm)
ABCDEFGH
MAGNEX150150
2708023		3.16011510210304069119
MAGNEX300300
2708024		10.910021015214506599178
MAGNEX600600
2708025		21.712024524620646599184
MAGNEX10001000
2708026		40.9146329306206492125237
MAGNEX15001500
2708027		71.7165392374206492161273
MAGNEX20002000
2708028		91.4165475478206492161273

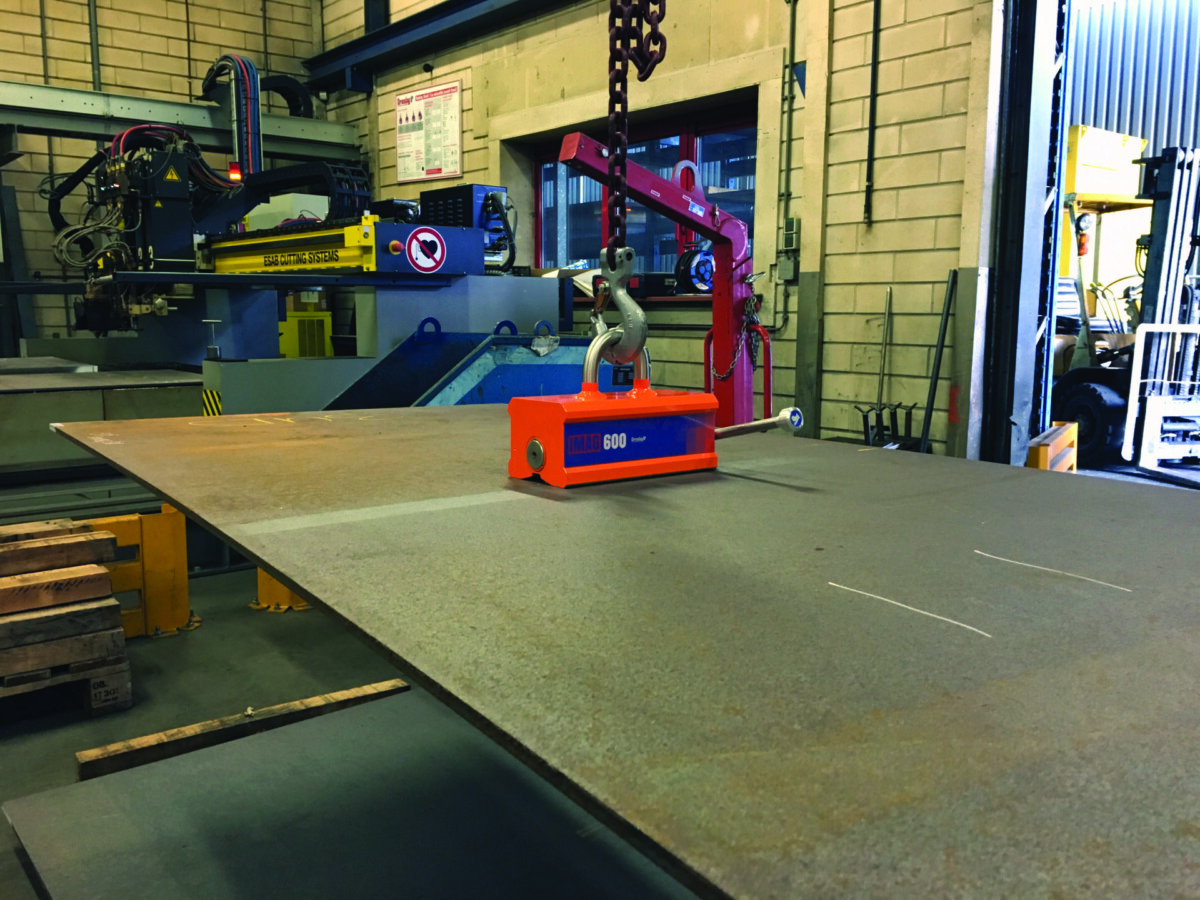

For Horizontal Lifting and Transfer.

*WLL based on low carbon, mild steel and a working temperature 68°F
