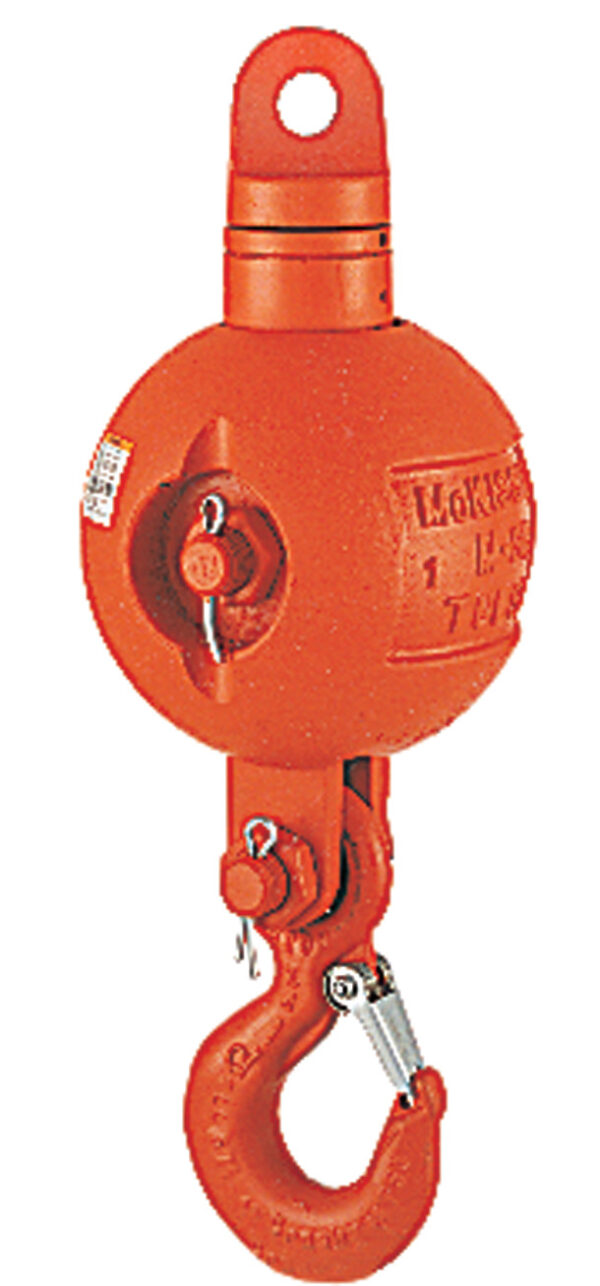

Crosby McKissick UB-500E Top Swivel Overhaul Balls with 320 Eye Hooks

SKU: GRRR499 Category: Blocks

Product details

Sizes 4 short Tons through 30 short Tons are available with Crosby’s S1316A positive-locking SHUR-LOC® hook, which may be used for lifting personnel. Meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
Design Factor 4:1
The top swivel design on the UB-500 assures the ball remains stationary if the wireline spins.
The swivel incorporates a sealed roller thrust bearing together with a grease fitting for easy lubrication.
Each ball can be equipped with the new McKissick® US-422T Wedge Socket which can be easily adjusted to fit various sizes of wireline by changing the wedge (ensure that correct wedge is used for selected wireline size).
All hooks used on UB-500 Overhaul Balls (S320, S320N & S1316A) are forged from alloy steel. The S320 and S320N hooks come complete with latches.
The S320 hook (PL latch) and the S320N hook (S4320 latch), with the proper latch attached, may be used for personnel lifting when secured with proper device (bolt, nut and pin for the PL latch; Cotter pin for the S4320 latch). Meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).

Videos

UB-500E Top Swivel Overhaul Balls with 320 Eye Hooks

UB500 Series Top Swiveling Overhaul Balls

McKissick® UB-500 Model No.	Stock No.	Dimensions (in)
		A	B	C	D	E	F	H	I	J	AA
												MB4T35E	1036000*	20.09	17.27	7.50	1.36	1.44	1.12	1.38	.88	1.31	2.5
												MB4T85E	1036009*	20.98	18.16	9.25	1.36	1.44	1.12	1.38	.88	1.31	2.5
												MB4T150E	1036027*	21.98	19.16	11.25	1.36	1.44	1.12	1.38	.88	1.31	2.5
												MB4T200E	1036036*	22.35	19.53	12.50	1.36	1.44	1.12	1.38	.88	1.31	2.5
												MB7T85E	1036045*	23.18	20.36	9.25	1.61	1.81	1.38	1.38	.88	1.31	3.0
												MB7T150E	1036054*	24.56	21.36	11.25	1.61	1.81	1.38	1.38	.88	1.31	3.0
												MB7T200E	1036072*	24.89	21.71	12.50	1.61	1.81	1.38	1.38	.88	1.31	3.0
												MB7T285E	1036081*	25.86	22.67	13.88	1.61	1.81	1.38	1.38	.88	1.31	3.0
												MB10T150E	1036090*	31.44	27.19	11.25	2.08	2.25	1.62	2.00	1.25	1.78	4.0
												MB10T200E	1036099*	31.81	27.56	12.50	2.08	2.25	1.62	2.00	1.25	1.78	4.0
												MB10T285E	1036117*	32.75	28.50	13.88	2.08	2.25	1.62	2.00	1.25	1.78	4.0
												MB10T350E	1036126*	33.31	29.06	15.00	2.08	2.25	1.62	2.00	1.25	1.78	4.0
												MB10T650E	1036135*	34.79	30.54	17.94	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB12T150E	1036144*											31.44	27.19	11.25	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB12T200E	1036153*	31.81	27.56	12.50	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB12T285E	1036171*	32.75	28.50	13.88	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB12T350E	1036180*	33.31	29.06	15.00	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB12T650E	1036189*	35.79	30.54	17.94	2.08	2.25	1.62	2.00	1.25	1.78	4.0
MB15T200E	1036198*	37.59	32.59	12.50	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB15T350E	1036207*	38.81	33.81	15.00	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB15T650E	1036216*	40.22	35.22	17.94	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB15T1150E	1036225*	42.22	37.22	21.62	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB20T200E	1036234*	37.59	32.59	12.50	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB20T350E	1036243*	38.81	33.81	15.00	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB20T650E	1036252*	40.22	35.22	17.94	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB20T1150E	1036261*	42.22	37.22	21.62	3.02	3.00	2.38	2.00	1.25	1.78	5.0
MB25T350E	1036270	47.18	40.18	15.00	3.00	3.62	3.00	2.75	1.75	1.78	6.5
MB25T650E	1036279	49.12	42.75	17.94	3.00	3.62	3.00	2.75	1.75	1.78	6.5
MB25T1150E	1036288	51.06	44.69	21.62	3.00	3.62	3.00	2.75	1.75	1.78	6.5
MB30T650E	1036297	49.12	42.75	17.94	3.00	3.62	3.00	2.75	1.75	1.78	6.5
MB30T1150E	1036306	51.06	44.69	21.62	3.00	3.62	3.00	2.75	1.75	1.78	6.5
