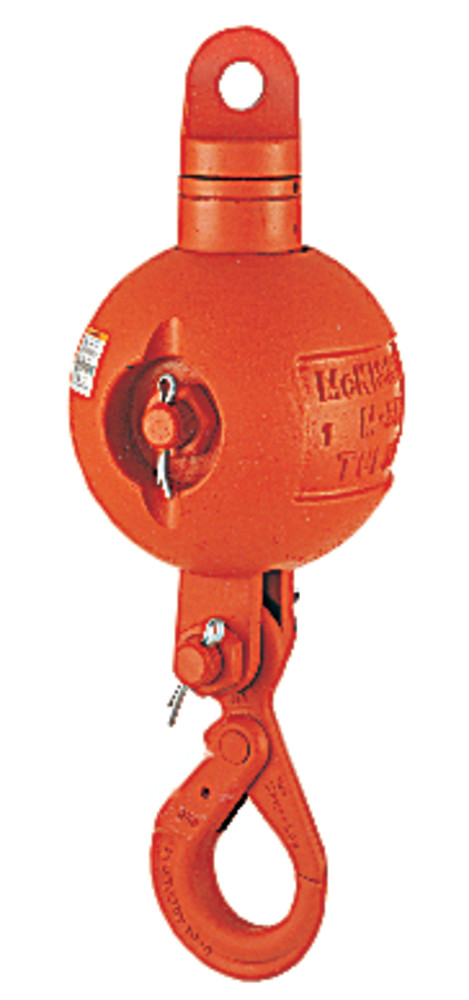

Red industrial lifting hook with swivel connection for heavy-duty applications.

Crosby McKissick UB-500S Top Swivel Overhaul Balls with SHUR-LOC® Hooks

SKU: GRRR398 Category: Blocks

Videos

UB-500S Top Swivel Overhaul Balls with SHUR-LOC® Hooks

Model No.	UB-500 "S" Stock No.	Dimensions (in)
		A	B	C	D	E	F	G	H	I	J
												MB4T35S	1036005	20.66	18.18	7.50	1.83	1.15	.94	1.88	1.38	.88	1.31
												MB4T85S	1036018	21.55	19.05	9.25	1.83	1.15	.94	1.88	1.38	.88	1.31
												MB4T150S	1036032	22.55	20.05	11.25	1.83	1.15	.94	1.88	1.38	.88	1.31
												MB4T200S	1036041	22.92	20.42	12.50	1.83	1.15	.94	1.88	1.38	.88	1.31
												MB7T85S	1036050	23.90	21.30	9.25	2.11	1.66	1.16	1.88	1.38	.88	1.31
												MB7T150S	1036063	25.28	22.30	11.25	2.11	1.66	1.16	1.88	1.38	.88	1.31
												MB7T200S	1036077	25.61	22.65	12.50	2.11	1.66	1.16	1.88	1.38	.88	1.31
												MB7T285S	1036086	26.58	23.61	13.88	2.11	1.66	1.16	1.88	1.38	.88	1.31
												MB10T150S	1036095	31.24	27.19	11.25	2.49	2.06	1.50	2.75	2.00	1.25	1.78
												MB10T200S	1036108	31.61	27.56	12.50	2.49	2.06	1.50	2.75	2.00	1.25	1.78
												MB10T285S	1036122	32.55	28.50	13.88	2.49	2.06	1.50	2.75	2.00	1.25	1.78
												MB10T350S	1036131	33.11	29.06	15.00	2.49	2.06	1.50	2.75	2.00	1.25	1.78
												MB10T650S	1036140	34.59	30.54	17.94	2.49	2.06	1.50	2.75	2.00	1.25	1.78

Model No.	UB-500 "S" Stock No.	Dimensions (mm)
		A	B	C	D	E	F	G	H	I	J
												MB4T35S	1036005	525	462	191	46.5	29.2	23.9	47.8	35.1	22.4	33.3
												MB4T85S	1036018	547	484	235	46.5	29.2	23.9	47.8	35.1	22.4	33.3
												MB4T150S	1036032	573	509	286	46.5	29.2	23.9	47.8	35.1	22.4	33.3
												MB4T200S	1036041	582	519	318	46.5	29.2	23.9	47.8	35.1	22.4	33.3
												MB7T85S	1036050	607	541	235	53.5	42.2	29.5	47.8	35.1	22.4	33.3
												MB7T150S	1036063	642	566	286	53.5	42.2	29.5	47.8	35.1	22.4	33.3
												MB7T200S	1036077	650	575	318	53.5	42.2	29.5	47.8	35.1	22.4	33.3
												MB7T285S	1036086	675	600	353	53.5	42.2	29.5	47.8	35.1	22.4	33.3
												MB10T150S	1036095	793	691	286	63.0	52.5	38.1	70.0	51.0	31.8	45.2
												MB10T200S	1036108	803	700	318	63.0	52.5	38.1	70.0	51.0	31.8	45.2
												MB10T285S	1036122	827	724	353	63.0	52.5	38.1	70.0	51.0	31.8	45.2
												MB10T350S	1036131	841	738	381	63.0	52.5	38.1	70.0	51.0	31.8	45.2
												MB10T650S	1036140	879	776	456	63.0	52.5	38.1	70.0	51.0	31.8	45.2

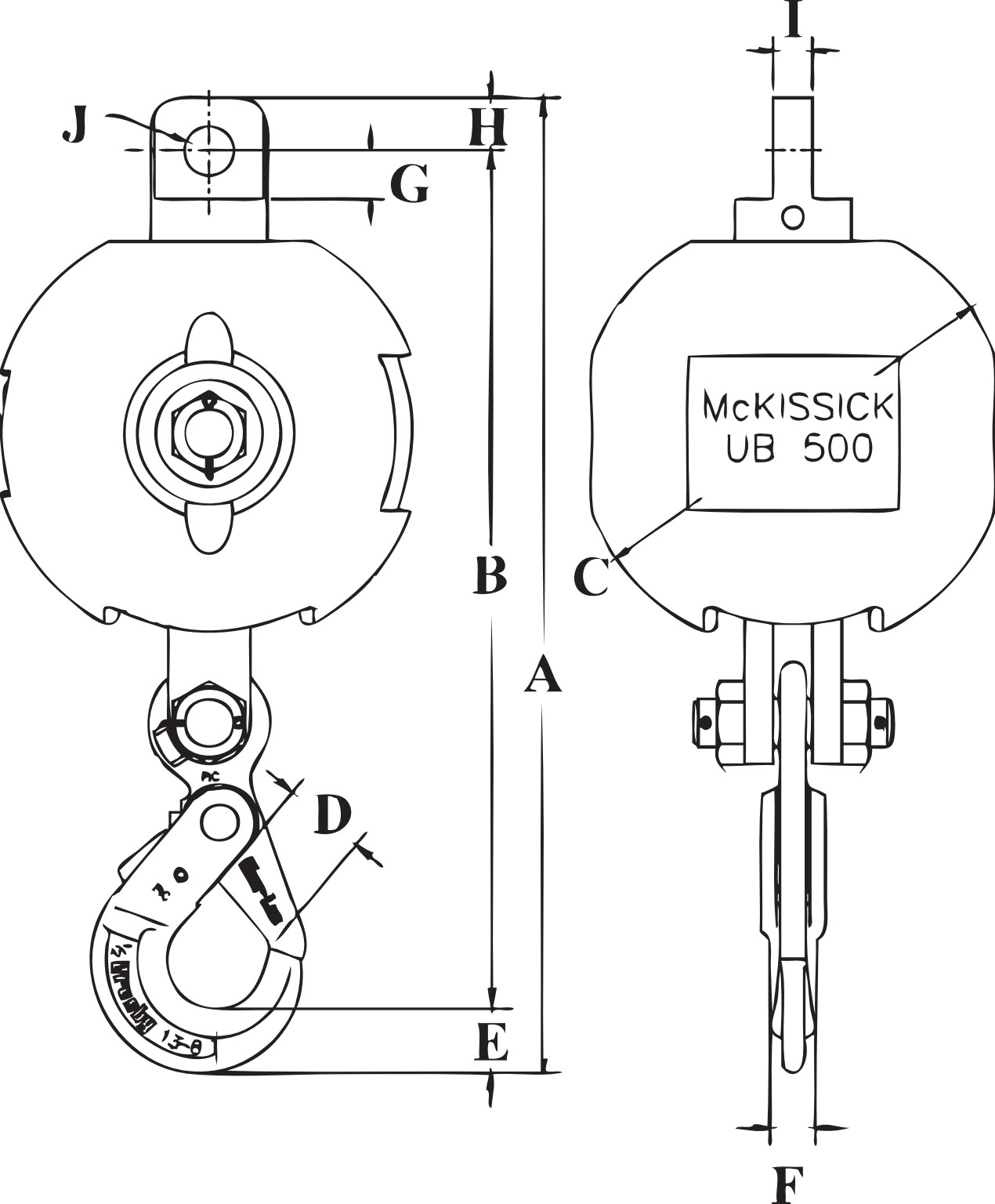

Diagram Images
