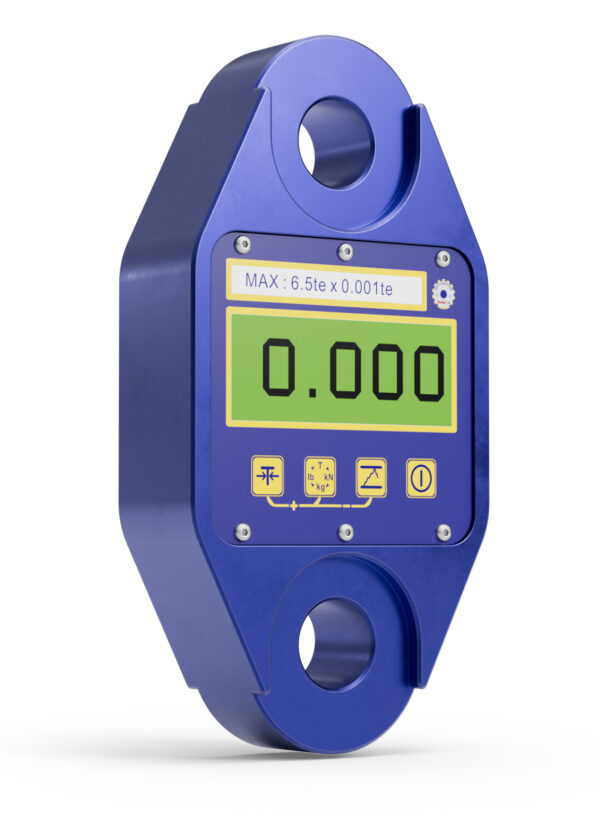

Crosby Straightpoint Self Indicating Dynamometer

Crosby Straightpoint Self Indicating Dynamometer - Image 2

Crosby Straightpoint Self Indicating Dynamometer - Image 3

Crosby Straightpoint Self Indicating Dynamometer - Image 4

Crosby Straightpoint Self Indicating Dynamometer

SKU: GRRR515 Category: Load Monitoring

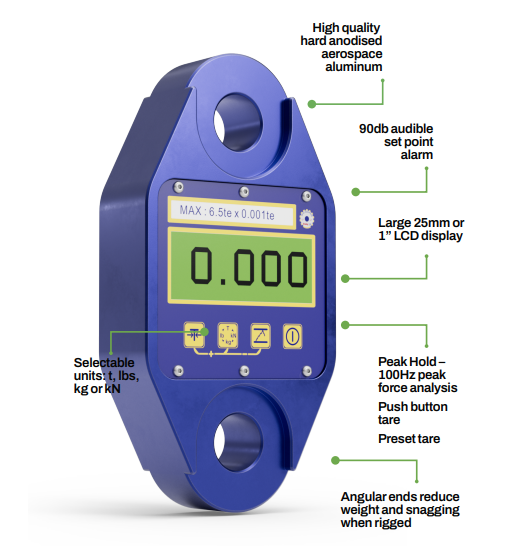

Product details

Large 1 in LCD display
0.2% high accuracy
Overload counter
90db Audible set point alarm
RS-485 serial output
IP65 / NEMA 4X
Design validated by F.E.A.
2-year warranty
Design Factor: 6:1
Battery Type: 9v PP3
Battery Life: 80 hrs continuous
Operating Temp: 4° to 122° F.
Accuracy: +/- 0.2% of full scale.
Display Type: 6 digit 1 in LCD.
Protection: IP65 / NEMA 4X.

Videos

Self Indicating Dynamometer

Stock No.	Model	Capacity (lb)	Resolution (lb)	Weight (lb)	Dimensions (in)						Crosby Shackle	Reference Part Number
					A	B	C	D	ØE	F
													2789709	SID6T5	14,300	2	3.3	8.82	1.73	4.45	6.14	1.08	1.3	G2130	1019533

Stock No.	Model	Capacity (t)	Resolution (t)	Weight (kg)	Dimensions (mm)						Crosby Shackle	Reference Part Number
					A	B	C	D	ØE	F
													2789709	SID6T5	6.5	0.001	1.5	224	44	113	156	27.5	33	G2130	1019533

Diagram Images
